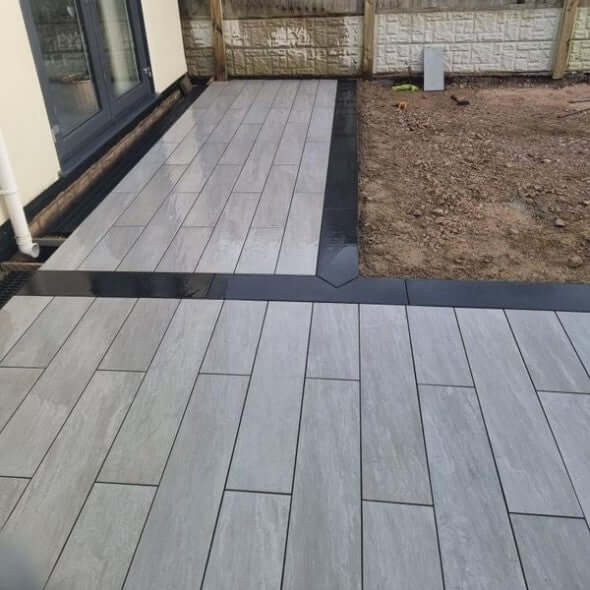

Paving Drainage UK — The Essential Guide to Getting It Right

Of all the technical considerations in a paving project, drainage is the one that causes the most problems when it goes wrong — and the one most frequently overlooked during the planning stage. Water that cannot escape from a paved surface damages the subbase, stains the paving, creates hazardous slip surfaces, and in hard frost can cause physical cracking and lifting of slabs. Getting drainage right from the outset is not optional — it is the foundation of a paving installation that performs well for decades.

At Paving and Slabs Ltd, our comprehensive drainage guide covers all aspects of paving drainage design and installation. This blog post covers the key principles every UK homeowner needs to understand before beginning any paving project.

When it rains on a paved surface, that water needs to go somewhere. In an unpaved garden, rainwater soaks into the soil — a process called infiltration. When you cover soil with an impermeable paved surface, that infiltration pathway is blocked. The water must therefore be managed through designed drainage — either by directing it to a permeable area (lawn, planting bed, soakaway) or into a formal drainage system.

Failure to manage this water effectively creates multiple problems:

Pooling — standing water on paved surfaces is a slip hazard, damages joints, and allows algae to establish even on resistant surfaces like our porcelain paving.

Subbase saturation — water that finds its way beneath the paving surface will saturate the subbase, reducing its load-bearing capacity and causing settlement.

Frost damage — water within or beneath the paving freezes and expands in winter, causing physical displacement and cracking of slabs and joints.

Building damage — water directed toward a building through inadequate paving drainage can cause damp penetration at floor level.

The primary drainage mechanism for any paved surface is a gradient — or fall — that directs surface water toward a drainage point. The minimum drainage fall for domestic paving is typically 1:80 (12.5mm per metre of run) — gentle enough to be invisible to the eye but sufficient to move water effectively.

Falls must be:

• Away from buildings — never toward a house wall or foundation
• Consistent — no flat spots or reverse falls that would trap water
• Adequate — minimum 1:80 for domestic paving; 1:60 recommended for driveways
• Directed toward a defined drainage point — lawn edge, planting border, soakaway, or channel drain

Establishing the correct fall direction and gradient is done at the subbase stage — the drainage fall is built into the subbase level and maintained through the mortar bed and paving surface above it. Trying to create drainage falls by varying the mortar bed thickness alone is not reliable.

Natural Drainage to Lawn or Borders

The simplest and most sustainable drainage solution is to direct paved surface water toward an adjacent permeable area — a lawn, planting border, or gravelled area. Water falling on the paving runs off the surface and soaks into the ground at the permeable boundary. This approach works well for smaller paved areas in gardens with sufficient permeable surface area adjacent to the paving.

Channel Drains

Channel drains — linear drainage channels set flush with the paving surface — collect surface water and direct it into underground drainage pipes. They are the most reliable drainage solution for larger paved areas, areas where surface water volumes are high, and driveways.

Channel drains can be:

• Linear — running across the width of a patio or driveway at the low point
• Perimeter — running around the edge of the paved area
• Central — dividing a large paved area with drainage channels at regular intervals

The channel drain system must connect to an appropriate outfall — either to a soakaway in permeable ground or to an existing surface water drainage system.

Soakaways

A soakaway is a rubble- or gravel-filled pit that allows collected surface water to percolate slowly back into the surrounding ground. Soakaways are appropriate where the surrounding ground is permeable and has sufficient infiltration capacity to handle the surface water volumes from the paved area. They should be positioned at least 5 metres from any building.

Permeable Paving

Some paving materials and installation methods allow water to permeate through the paved surface itself rather than running off. Cobblestones laid on a permeable bedding material create a naturally permeable surface. Certain purpose-made permeable porcelain and concrete products are also available.

Permeable paving is particularly relevant for new domestic driveways — see the planning regulations section below.

In England, planning permission is required for any new driveway surface larger than 5 square metres that is impermeable. This regulation was introduced to address the flooding risk associated with large areas of impermeable front garden paving.

You have two ways to comply:

1. Use a permeable or porous surfacing material (permeable porcelain, cobblestones, gravel, or purpose-made permeable block paving)
2. Ensure that surface water runoff drains to a permeable area (lawn, border, soakaway) rather than to the street

Our driveway paving range includes options suitable for both compliant approaches. The drainage guide covers driveway drainage compliance in detail.

Porcelain Paving

Porcelain paving is impermeable — all surface water runs off the slab surface. Drainage design is therefore critical for any porcelain paved area. The benefit of porcelain's impermeability is that water doesn't soak into the slab itself — reducing frost risk and staining potential.

Indian Sandstone

Indian sandstone is porous to varying degrees depending on the specific stone. While some surface water percolates through the stone itself, this should not be relied upon as a drainage mechanism — designed surface drainage falls are still essential. See our Indian sandstone technical guide for porosity information specific to different sandstone products.

Granite and Natural Stone

Granite paving and setts and most natural stone is impermeable to semi-permeable depending on type. Design drainage falls as for impermeable surfaces and treat any permeability as a bonus rather than a primary drainage mechanism.

No drainage fall designed in — the most common mistake, usually discovered when the first heavy rain reveals pools of standing water on a newly laid patio.

Falls directing water toward the house — typically caused by following the existing ground level without establishing the required falls independently.

No connection for collected water — channel drains installed without an appropriate outfall or soakaway.

Paving too close to damp proof course — finished paving level less than 150mm below the damp proof course of adjacent buildings, creating a damp penetration risk.
