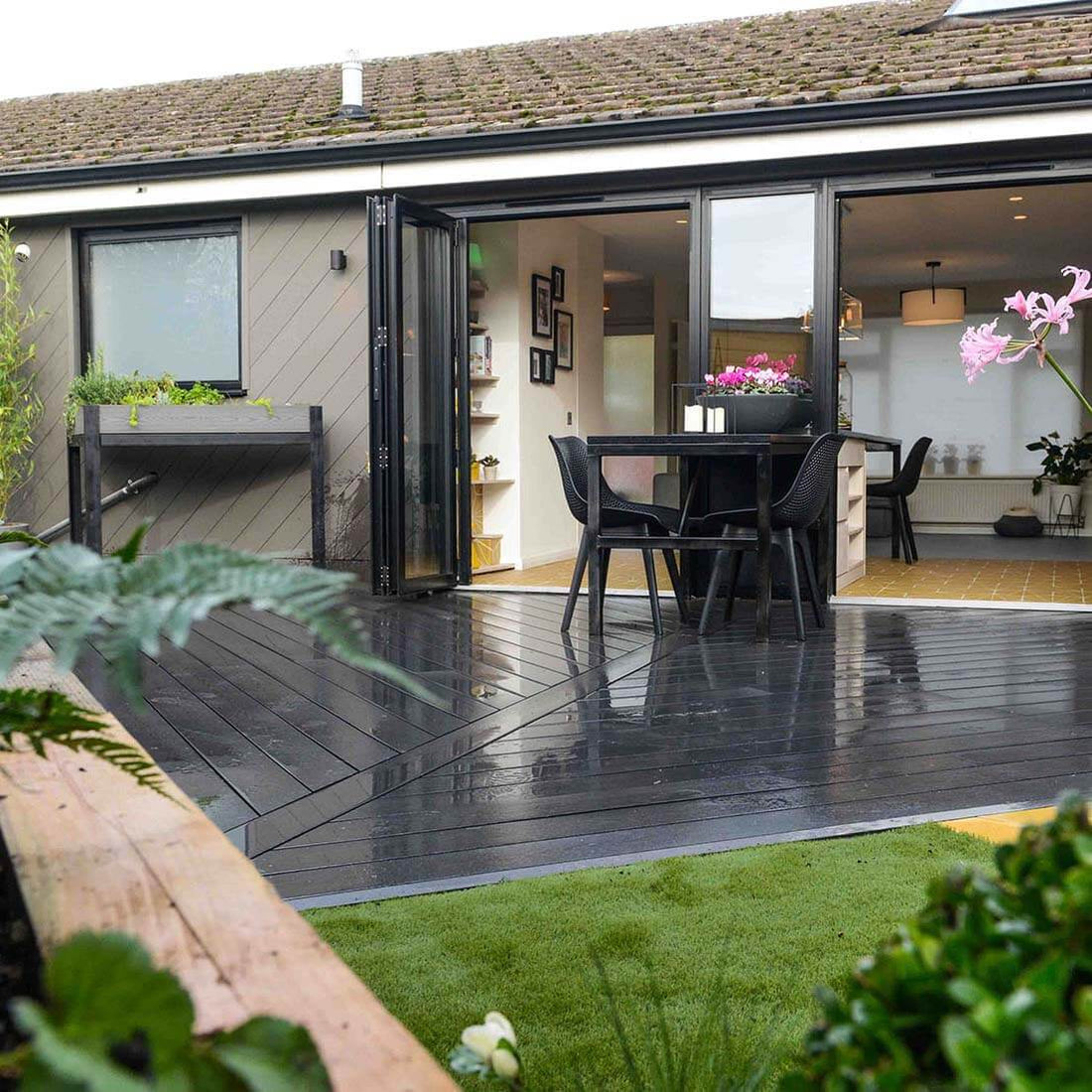

Composite Decking Installation Guide — Everything You Need to Know

Installing composite decking is one of the most rewarding outdoor projects a UK homeowner can take on. Done correctly, it creates a durable, low-maintenance outdoor platform that will look great for 25 years or more — with no painting, staining, or sealing required. Done incorrectly, even the best composite boards can flex, squeak, discolour, or trap moisture beneath them.

This complete installation guide from Paving and Slabs Ltd covers everything — from planning and sub-frame construction through to fixing, spacing, finishing, and final checks. Whether you are a confident DIYer or a professional landscaper installing composite decking for a client, this guide gives you the full picture before a single board goes down.

Already know what composite decking is but unsure whether it is right for your project? Read our comparison first: Composite Decking vs Patio Slabs — Which Is More Cost-Effective in the UK?

What You Will Need Before You Start

Before a single board goes down, make sure you have the following materials and tools ready on site:

Materials:

• Composite decking boards (from our composite decking collection)
• Treated timber joists or aluminium/steel decking joists (at correct spacing for your board span)
• Hidden clip fasteners (included with most composite board systems)
• Stainless steel or coated decking screws (for joist-to-frame fixing)
• Post anchors or concrete post bases (if building from ground level)
• Fascia boards and end caps (for a finished edge profile)
• Weed membrane or gravel board (for under-deck area)

Tools:

• Circular saw or mitre saw with fine-tooth blade suitable for composite
• Drill/driver with bits
• String line and spirit level
• Tape measure and square
• Rubber mallet
• Safety glasses and hearing protection

Step 1 — Plan Your Deck Layout and Calculate Materials

Before purchasing materials, produce a scale drawing of your proposed deck area. Mark the position of posts, joists, and the direction boards will run. Board direction affects the visual proportions of the deck — running boards lengthways from the house tends to make a garden feel longer, while running them widthways makes it feel broader.

To calculate how many boards you need, measure the total deck area in square metres and add 10% for waste from cutting. Joist spacing should be confirmed against the specific composite board manufacturer's technical data sheet — most composite boards require joists at 400mm centres for standard installations, reducing to 300mm centres for diagonal laying or board ends.

Also plan your drainage gradient at this stage. The sub-frame must incorporate a minimum 1:100 fall away from the house (or towards a drainage channel) to prevent standing water beneath the deck. This is one of the most frequently missed steps in DIY composite decking installations.

Step 2 — Prepare the Ground Beneath the Deck

Before building the sub-frame, prepare the ground beneath. This step is often skipped but is critical for long-term performance:

1. Clear all vegetation, roots, and organic material from beneath the deck footprint
2. Lay a weed-suppressant membrane over the cleared area — this prevents plants growing up through the deck structure
3. Cover the membrane with a layer of gravel or shingle for drainage and ventilation

Good under-deck airflow is essential. Without it, moisture accumulates beneath the boards, promoting algae growth on the underside and potentially affecting the sub-frame. A minimum clearance of 50mm between the underside of boards and the membrane beneath is the minimum; 150mm or more is preferable wherever possible.

Step 3 — Build the Sub-Frame

The sub-frame is the most structurally critical part of any decking installation. A poorly built frame will result in a deck that flexes, squeaks, or becomes uneven over time — regardless of the quality of the composite boards on top.

For ground-level decks:

• Set concrete post bases or drive-in post anchors at the corner positions and at maximum 1.8m centres across the deck area
• Fix the perimeter beam (rim joist) to the post bases first, checking it is level in all directions
• Install internal joists at 400mm centres, fixing to the rim joist with joist hangers — do not toe-nail joists into beams as this provides insufficient long-term strength
• Check for level and square throughout — a sub-frame that is not level will produce a deck that is not level, and no amount of board adjustment will correct a twisted or racked frame

For raised decks:

• All raised decks over 600mm above ground level may require building regulations approval — check with your local authority before starting
• Structural post sizing should be specified by an engineer for any deck over 1m in height
• Handrail and balustrade requirements apply to decks where any edge is more than 600mm above adjacent ground level

Material note: Treated softwood joists are the most common sub-frame material for composite decking. Aluminium joists are the premium choice — they will never rot, do not move with moisture changes, and are the best long-term option particularly in exposed or coastal locations. If using timber joists, ensure they are C24 grade or above and pressure-treated to UC4 specification for ground contact.

Step 4 — Lay the First Board and Set Your Starting Line

Before laying any boards, snap a chalk line or set up a string line parallel to the house (or your chosen start edge) to act as a guide. The first board sets the alignment for every subsequent board — take your time getting it perfectly straight.

Fix the first board using face-fix screws at this stage (these will be hidden by the fascia board later) or use starter clips if your system provides them. Check the board is parallel to your guide line before fixing.

Leave an expansion gap between the board end and any fixed structure (walls, posts) of at least 10–15mm. Composite boards expand and contract with temperature changes — without adequate expansion allowance, boards will bow or buckle in summer.

Step 5 — Install Boards Using Hidden Clip Fixings

The hidden clip system is one of the most appealing features of premium composite decking — it eliminates visible fixings on the deck surface for a clean, contemporary result.

1. Push the first clip onto the groove of the fixed starter board and screw it down to the joist
2. Slot the next board into the clip — the clip simultaneously spaces the board correctly and locks both boards in place
3. Continue across the deck, inserting clips at every joist crossing point
4. Check every 3–4 boards that your lines are still straight — minor corrections are easy to make early, impossible to correct later

The clip spacing automatically sets the correct gap between boards (typically 5–6mm). This gap allows water to drain freely through the deck surface, preventing puddles and reducing slip risk in wet weather.

Step 6 — Cut the Final Board and Finish the Edges

The final board at the far edge of the deck will almost certainly need to be ripped (cut lengthways) to fit. Use a circular saw with a fine-tooth blade and cut slowly to avoid chipping the composite surface. Apply end-cap trims or fascia boards to all cut edges immediately after cutting — exposed cut ends are the most vulnerable part of any composite board.

Fix fascia boards around the full perimeter of the deck to conceal the sub-frame and finish the edge profile cleanly. Fascia boards are mitred at corners for a neat result.

Step 7 — Install Drainage Channels and Check for Pooling

Once all boards are laid, pour a bucket of water across various points of the deck surface and check it drains freely through the board gaps. If water pools anywhere, check the fall on the sub-frame beneath — you may need to pack up individual joists slightly to correct low spots.

For decks adjacent to the house, ensure any water draining from the deck surface does not run back towards the building or beneath a damp-proof course. A drainage channel or gully at the house-facing edge of the deck is the correct solution if this is a risk.

Composite Decking Maintenance After Installation

One of the biggest advantages of composite decking over timber is how little maintenance it requires once installed. There is no painting, staining, oiling, or sealing required at any point. To keep boards looking their best:

• Sweep regularly to remove leaves, debris, and organic material that can hold moisture and encourage algae
• Wash down with soapy water and a stiff brush as needed — most composite boards can also be carefully jet-washed on a low pressure setting
• Clear any debris from between boards and drainage gaps annually
• Check and tighten any exposed fixings annually

Composite Decking vs Patio Slabs — Which is Right for Your Garden?

Composite decking excels for raised platforms, balconies, and areas where a concrete sub-base would be impractical or expensive. For ground-level outdoor surfaces — patios, pathways, and driveways — paving slabs are typically the better choice, offering a harder, more permanent surface. Many UK homeowners combine both: a composite deck for a raised terrace stepping down to a porcelain paving or patio slab lower garden level.

For a full cost and performance comparison: Break-Even Patio Options in the UK — Paving Slabs vs Gravel vs Decking.

Shop Composite Decking at Paving and Slabs Ltd

At Paving and Slabs Ltd, we supply premium composite decking boards in a range of colours and finishes, with nationwide UK delivery directly to your home or site. Explore our full range:

• Composite Decking Boards — full range of colours and finishes
• Composite Fencing — matching low-maintenance fencing to complete your outdoor space
• Porcelain Paving Slabs — ideal for ground-level patio areas alongside your deck
• Patio Slabs — full patio range for all budgets and styles
• Driveway Paving — complete your front garden alongside the decking project

---

Frequently Asked Questions — Composite Decking Installation

Do I need planning permission to install composite decking?

Most ground-level decks under 30cm in height do not require planning permission in England, provided the deck does not cover more than 50% of the garden area. Raised decks over 30cm, decks on listed buildings, or decks in designated areas may require consent. Always check with your local planning authority before starting.

What joist spacing should I use for composite decking?

Most composite decking boards require joists at 400mm centres for standard straight laying. For diagonal board patterns, reduce spacing to 300mm centres. Always follow the specific manufacturer's technical data sheet for the boards you are using — joist spacing requirements vary between products.

Can I install composite decking on an existing timber frame?

Yes, provided the existing frame is structurally sound, level, and the joist spacing is appropriate for your chosen composite boards. Check all existing timbers for rot, damaged fixings, and correct spacing before laying new composite boards on top of an old frame.

How long does composite decking installation take?

A typical 20–30m² ground-level deck takes 2–3 days for two people — one day for the sub-frame, one to two days for board laying and finishing. More complex raised decks or multi-level designs take longer. Preparation and sub-frame construction always takes longer than the board laying itself.
